S3 Job Sink

Overview

By the end of this guide, you’ll have an Intuned project (+ scraping Job with S3 sink) that sends scraped data directly to AWS S3. You’ll:

Create an S3 bucket and configure AWS credentials for Intuned.
Configure a Job with an S3 sink.
Trigger a Job and verify data lands in S3.

Prerequisites

Before you begin, ensure you have the following:

An AWS account with S3 access.
An Intuned account.

This guide assumes you have a basic understanding of Intuned Projects and Jobs. If you’re new to Intuned, start with the getting started guide.

When to use S3 integration

Scrapers built on Intuned typically run via Jobs on a schedule. When a JobRun completes, you want that data sent somewhere for processing or persistence. S3 integration automatically delivers scraped data to your S3 bucket as JSON files. From there, you can process results using AWS tools like Lambda—or connect to other services.

While this guide focuses on scraping, S3 integration works for any Intuned Job—the files sent to S3 are Run results from any automation.

Guide

1. Create an S3 bucket and access credentials

Create an S3 bucket and IAM credentials that Intuned can use to write data:

Create an S3 bucket

Log in to the AWS Management Console
Navigate to the S3 service
Select Create bucket
Enter a unique bucket name (e.g., my-intuned-data)

Choose a descriptive bucket name that makes it easy to identify its purpose (e.g., company-intuned-production).

Configure bucket settings

When creating your bucket:

Object Ownership: Set to “Access Control Lists (ACLs) disabled”
Block Public Access: Keep all public access blocked (recommended for security)
Bucket Versioning: Optional - enable if you want to keep historical versions of files
Encryption: Optional - enable default encryption for data at rest
Select Create bucket to finish

Intuned only needs write access to your bucket, so keeping public access blocked is safe and recommended.

Create an IAM user for Intuned

Create a dedicated IAM user with limited permissions for Intuned:

Navigate to IAM in the AWS Console
Select Users in the left sidebar, then Create user
Enter a username (e.g., intuned-s3-writer)
Select Next, which takes you to the permissions page

On the permissions page:

Select Attach existing policies directly
Select Create policy (opens in new tab)
Select the JSON tab and paste this policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject"
      ],
      "Resource": "arn:aws:s3:::YOUR-BUCKET-NAME/*"
    }
  ]
}

Replace YOUR-BUCKET-NAME with your actual bucket name
Select Next, which takes you to the Review page
Name the policy IntunedS3WritePolicy
Select Create policy

Replace YOUR-BUCKET-NAME in the policy with your actual bucket name. Don’t use root account credentials - always create a dedicated IAM user.

Attach policy and generate access keys

Back in the user creation flow:

Refresh the policies list
Search for IntunedS3WritePolicy
Select the checkbox next to the policy
Select Next to go to the Review page
Select Create user

Then open the newly created user page:

Go to the Security credentials tab
Select Create access key
Choose Application running outside AWS and select Next
Select Create access key
Copy the Access key ID - you’ll need this for Intuned
Copy the Secret access key - you’ll need this for Intuned (only shown once)
Download the CSV or save these credentials securely

Store your credentials securely. The secret access key is only shown once and cannot be retrieved later. Never commit credentials to version control.

Note your configuration details

You now have everything needed to configure S3 in Intuned. Save these details:

Bucket name: Your S3 bucket name
Region: Your AWS region (e.g., us-west-2)
Access key ID: From the IAM user
Secret access key: From the IAM user

You’ll use these in the next section to configure your Intuned Job.

2. Configure a Job with an S3 sink

Now that your S3 bucket is ready, add an S3 sink to a Job so Run results are delivered to your bucket.

Prepare a project

You can use an existing project or create a new one.For this example, we’ll use the ecommerce-scraper-quickstart project that you can deploy using the Deploy your first scraper quickstart tutorial.

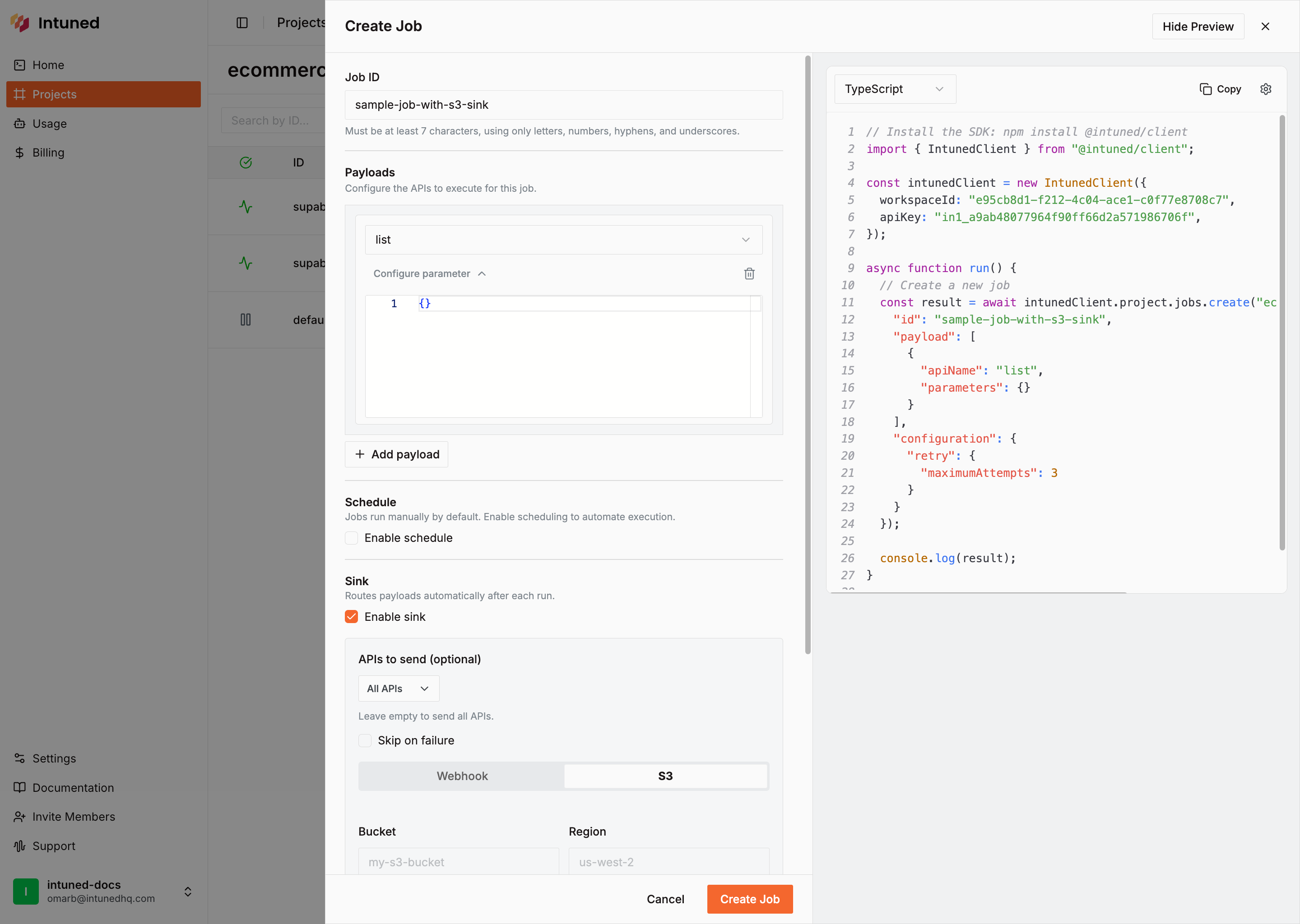

Create a Job with S3 sink

Dashboard
TypeScript SDK
Python SDK

Go to app.intuned.io
Open your ecommerce-scraper-quickstart project
Select the Jobs tab
Select Create Job
Fill in the Job details:
- Job ID: default-with-s3
- Payload API: list
- Payload Parameters: {}
Enable sink configuration and add your S3 details:
- Type: s3
- Bucket: Your S3 bucket name (e.g., my-intuned-scraper-data)
- Region: Your AWS region (e.g., us-west-2)
- Access Key ID: Your IAM user access key
- Secret Access Key: Your IAM user secret key
- Prefix (optional): A path prefix to organize files (e.g., ecommerce-data/)
- Skip On Fail (optional): Check to skip writing failed Runs to S3

Select Save to create the Job.

import { IntunedClient } from '@intuned/client';

const intunedClient = new IntunedClient({
  workspaceId: 'your-workspace-id',
  apiKey: process.env.INTUNED_API_KEY ?? ''
});

async function createJobWithS3Sink() {
  const result = await intunedClient.project.jobs.create(
    'ecommerce-scraper-quickstart',
    {
      id: 'default-with-s3',
      payload: [
        {
          apiName: 'list',
          parameters: {}
        }
      ],
      configuration: {
        retry: {},
        maxAttempts: 3
      },
      sink: {
        type: 's3',
        bucket: 'my-intuned-scraper-data',
        region: 'us-west-2',
        accessKeyId: process.env.AWS_ACCESS_KEY_ID!,
        secretAccessKey: process.env.AWS_SECRET_ACCESS_KEY!,
        prefix: 'ecommerce-data/',
        skipOnFail: false
      }
    }
  );

  console.log('Job created with S3 sink:', result.id);
}

createJobWithS3Sink();

Store your AWS credentials in environment variables (AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY) rather than hardcoding them in your source code.

from intuned_client import IntunedClient
import os

with IntunedClient(
    workspace_id='your-workspace-id',
    api_key=os.getenv('INTUNED_API_KEY', '')
) as ic_client:
    result = ic_client.project.jobs.create(
        project_name='ecommerce-scraper-quickstart',
        id='default-with-s3',
        payload=[
            {
                'apiName': 'list',
                'parameters': {}
            }
        ],
        configuration={
            'retry': {},
            'maxAttempts': 3
        },
        sink={
            'type': 's3',
            'bucket': 'my-intuned-scraper-data',
            'region': 'us-west-2',
            'accessKeyId': os.getenv('AWS_ACCESS_KEY_ID'),
            'secretAccessKey': os.getenv('AWS_SECRET_ACCESS_KEY'),
            'prefix': 'ecommerce-data/',
            'skipOnFail': False
        }
    )

    print(f'Job created with S3 sink: {result.id}')

Store your AWS credentials in environment variables (AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY) rather than hardcoding them in your source code.

Trigger the Job

Dashboard
TypeScript SDK
Python SDK

In the Jobs tab, find your new Job (default-with-s3)
Select … next to the Job
Select Trigger

The Job starts running immediately. You’ll see the JobRun appear in the dashboard with status updates.

import { IntunedClient } from '@intuned/client';

const intunedClient = new IntunedClient({
  workspaceId: 'your-workspace-id',
  apiKey: process.env.INTUNED_API_KEY ?? ''
});

async function triggerJob() {
  const result = await intunedClient.project.jobs.trigger(
    'ecommerce-scraper-quickstart',
    'default-with-s3'
  );

  console.log(`JobRun started: ${result.id}`);
}

triggerJob();

from intuned_client import IntunedClient
import os

with IntunedClient(
    workspace_id='your-workspace-id',
    api_key=os.getenv('INTUNED_API_KEY', '')
) as ic_client:
    result = ic_client.project.jobs.trigger(
        project_name='ecommerce-scraper-quickstart',
        job_id='default-with-s3'
    )

    print(f'JobRun started: {result.id}')

After triggering:

JobRun starts immediately - Visible in the Intuned dashboard
API Runs execute - The list API runs first, then details APIs for each product
Files written to S3 - When each API Run completes, Intuned writes a JSON file to your bucket

Inspect data in S3

After the Job completes, view your data in S3:

Navigate to the S3 Console
Open your bucket (e.g., my-intuned-scraper-data)
Navigate to your prefix path if you specified one (e.g., ecommerce-data/)

S3 file structure:Files are organized differently depending on whether you’re using a Job sink or a Run sink:

Job sink: {prefix}/{jobId}/run-{jobRunId}/{apiRunId}.json
Run sink: {prefix}/runs/{apiRunId}.json

Since we’re using a Job sink in this example, your files follow the Job sink pattern.What to expect:

One JSON file per API Run
The initial list API Run has one file
Each details API Run (created by extendPayload) has its own file

The ecommerce scraper uses extendPayload to create detail tasks for each discovered product. You’ll see multiple files: one for the initial list Run, then one for each details Run.

Example S3 payload:

View sample S3 file content

{
  "workspaceId": "e95cb8d1-f212-4c04-ace1-c0f77e8708c7",
  "apiInfo": {
      "name": "details",
      "runId": "656CxOdANRlR5lWUAt_eC",
      "parameters": {
          "detailsUrl": "https://www.scrapingcourse.com/ecommerce/product/abominable-hoodie/",
          "name": "Abominable Hoodie"
      },
      "result": {
          "status": "completed",
          "result": [
            {
              "id": "prod-1",
              "name": "Wireless Headphones",
              "price": "$79.99"
            },
            {
              "id": "prod-2",
              "name": "Smart Watch",
              "price": "$199.99"
            }
          ],
          "statusCode": 200
      }
  },
  "project": {
      "id": "482bf507-5fcc-43ed-9443-d8fff86015c4",
      "name": "ecommerce-scraper-quickstart"
  },
  "projectJob": {
      "id": "default"
  },
  "projectJobRun": {
      "id": "08523ea6-5c6b-413e-995a-40e4f6fd7846"
  }
}

If writing to S3 fails (e.g., due to incorrect credentials or insufficient permissions), Intuned pauses the Job automatically. The pause reason is “Failed to write to S3 sink”. Check your credentials, fix the issue, and resume the Job from the dashboard.

Configuration options

For full details on S3 sink configuration and available options, see the S3 Sink API Reference. Key configuration fields:

Field	Required	Description
`bucket`	Yes	S3 bucket name
`region`	Yes	AWS region (e.g., `us-west-2`)
`accessKeyId`	Yes	AWS access key ID
`secretAccessKey`	Yes	AWS secret access key
`prefix`	No	Path prefix for organizing files
`skipOnFail`	No	Skip writing failed Runs to S3 (default: false)
`apisToSend`	No	List of specific API names to send (default: all APIs)
`endpoint`	No	Custom endpoint for S3-compatible services
`forcePathStyle`	No	Use path-style URLs for S3-compatible services

Processing data from S3

Once data lands in S3, you can process it in various ways depending on your needs. A common pattern is using an AWS Lambda that triggers automatically when a new file arrives. Typical processing steps include:

Normalizing the data structure
Removing empty fields
Validating against a schema
Persisting to a database or data warehouse

Every company has different requirements—some use Athena for querying, others pipe data to Snowflake or BigQuery. Choose the approach that fits your data pipeline.

Best practices

Use least privilege IAM policies: Create a dedicated IAM user for Intuned with only s3:PutObject permission. Restrict access to specific bucket paths using resource ARNs. Never use root account credentials.
Organize data with prefixes: Use meaningful prefix structures like {environment}/{project-name}/{date}/ to make data easier to find, manage, and set lifecycle policies on.
Set up lifecycle policies: Reduce storage costs by transitioning older data to S3 Glacier and deleting data you no longer need. This can reduce costs significantly for infrequently accessed data.
Monitor usage and costs: Enable S3 Storage Lens for bucket-level insights, set up CloudWatch alarms for unexpected growth, and use Cost Explorer to track costs by bucket.

Troubleshooting

Job paused: “Failed to write to S3 sink”

Cause: Intuned automatically pauses the Job when it fails to write data to S3. Common reasons include invalid or expired AWS credentials, insufficient IAM permissions (missing s3:PutObject), incorrect bucket name or region, or the bucket doesn’t exist. Solution: Check the Job status in the Intuned dashboard (shows as “Paused”). Fix the underlying issue by verifying AWS credentials, ensuring IAM policy includes s3:PutObject permission, and confirming bucket name and region match your configuration. Test credentials with aws s3 ls s3://your-bucket-name. Update the Job configuration if needed, then select Resume from the dashboard. The Job continues from where it paused.
